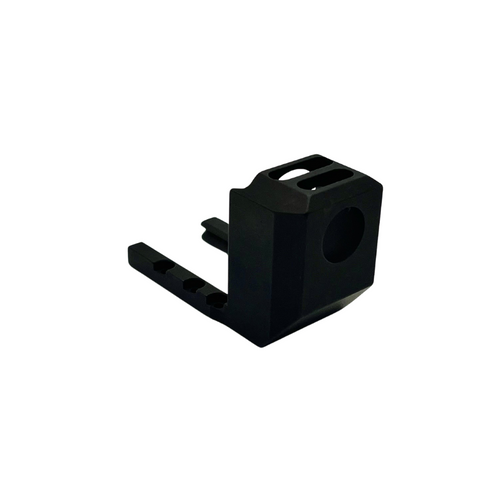

Archon Type B Light-Mounted Compensator

$150.00
(No reviews yet) Write a Review
SKU:
C-TYPEB-LM-X300UA-FI
Adding to cart… The item has been added

Please see instructions and information below before adding to cart.

Transform your shooting experience with precision and control. The Vantage Point Armory Compensator combines innovative technology with a patent-pending design, offering unparalleled functionality and adaptability for any situation.

Minimize Recoil / Reliable Compensation: Minimize recoil and maintain control shot after shot. During firing of the weapon, the attached compensator funnels the gas from the propellant through the ports machined into the compensator.  This acts the same as other compensators on the market.  However, because this system is not attached to the slide or barrel it does not inhibit, change or impede the cycling action of the pistol.

Enhance Stability: Ehanced stability and  target reacquisition for unparalleled accuracy

Rugged and Reliable: Designed to withstand intense shooting sessions. Drop tests have proven the Vantage Point Compensator to be as rugged as it is effective.

Interfaces with the Pistol via a Weapon-Mounted Light: Ideal for those seeking enhanced performance with a weapon light:

Holster Selection: Any universal holster (e.g., PHLster Floodlight) or custom holster that normally accepts a standard frame-mounted accessory such as a Surefire X300U-A light will fit with no modifications to the holster because the accessory remains in the same location as when mounted using the original rails that originally came with the accessory. Learn more about holster compatibility here.

Standoff Device: When in a situation where the muzzle of the firearm is pushed up against its intended target, the pistol will not go out of battery and therefore it will still be able to fire with the compensator in place.

Ease of Cleaning: Barrel-mounted compensators need to be disassembled and unthreaded to be cleaned which can be a hassle and time consuming to re-time the device. This unit can just be unclamped from the rail by disengaging the locking lug on the accessory for easy field stripping and cleaning of the firearm and compensator.

Price vs. Competition: Since the Vantage Point Compensator mounts to the accessory rail, there is no need for expensive aftermarket barrels.

50 State Legal: Since no threaded barrel is required, our compensator is legal in all 50 states.

Sleek Design: The designer has matched the lines of each individual slide to the compensator, resulting in a streamlined device.

Made in USA: Crafted with precision from premium materials in the USA.

  • Compatible with: Archon Type B
  • Anodize Color: Black
  • Material: 7075 Aluminum
  • Rated for Standard and +P/+P+ Ammo
  • Factory slide, barrel, and frame required for proper installation

Carefully read and follow the instructions below to avoid damaging your compensator and firearm. Failure to follow these instructions may result in injury to the shooter and damage to the compensator and firearm.  As the Customer, you acknowledge and agree that it is solely your responsibility for complying with these procedures and checking your compensator regularly. We are not responsible for damage to the compensator or firearm.

Step-by-Step Instructions for Assembling the Vantage Point Archon Type B Light-Mounted Compensator to the Surefire X300U-A.

Before you begin, ensure you have the following:

  • VP Armory Archon Type B Light-Mounted Compensator
  • SureFire X300U-A Weapon Light (& “P” Latch)
  • Torque wrench with 5/64" Allen key (recommended) or 5/64” Allen Wrench
  • Archon Type B



1. Verify the Correct Light:

    • Ensure you have the required light for the assembly, specifically the SureFire X300U-A Weapon Light.
    • Ensure Proper Latch Usage: For the Archon Type B, use the "P" latch (include with SureFire X300U-A)



2. Prepare the Firearm:

    • Ensure the firearm is unloaded before proceeding.



3. Remove OEM Bolts:

    • Using an Allen key, remove the six OEM bolts from the housing of the SureFire X300U-A light. This will free up the polymer rails that will no longer be needed.



4. Verify Spring Placement:

    • *The "P" latch on the Surefire X3000U-A must be used
    • Before proceeding, ensure that the spring is inside the groove on the backside of the tab of the P-Latch.
    • If the spring is outside the spring pocket, it may still compress, allowing you to assemble everything, however it will make it difficult to attach or remove the compensator without unscrewing it.
    • To avoid this issue, it's recommended to place the spring into the groove and then fold the light down on top of it, using your thumb to keep tension. This ensures the spring is properly seated in the groove.
    • Test the spring placement by pushing it down. It should move easily to the bottom. If it is difficult to push, the spring may not be in the correct position.



5. Position Compensator:

    • Release the lock clamp by pulling back the two wings located on the sides of the assembly.
    • Align the compensator with the rails of the pistol. Slide the compensator onto the rails, making sure it fits snugly.



6. Secure Compensator:

    • Once the placement is verified, proceed to attach the six bolts.
  • We highly recommend using a torque wrench.
    • Tighten all six bolts 5-6 inch-pounds to ensure the compensator is firmly attached.
    • If you don’t have a torque wrench, tighten all six bolts until they are fully seated, then an additional 1/8 of a turn.
    • If the compensator snaps on and off smoothly, it indicates that the spring is properly seated in the groove.
      1. *Ensure the locking tab of the SureFire is up and secured when the compensator is mounted to the firearm. If the tab is down, it is not locked and the compensator can detach during firing.
      2. When the wings that control the locking bar click into place, the compensator is securely attached.



7. Final Check:

    • After assembly, perform a final check to ensure all bolts are securely tightened. It's essential to use all six bolts for stability and security.
    • Ensure that compensator is in place and aligned. Apply slight tension to confirm the compensator is securely attached.



8. Mark the Screws:

  • Use a paint pen to mark your screws. This will help you track if they back out over time.
      1. Check the screws on a regular basis to ensure they have not backed out.



9. Functional Test:

    • Test the compensator's functionality on your firearm to ensure proper attachment and functionality.



10. Completion:

    • With the compensator securely attached and tested, your assembly process is complete, and the Vantage Point compensator is ready for use.



Upgrading your handgun with a compensator requires a higher level of maintenance and care. Ensuring that it is installed correctly and checked frequently is critical for proper function and safety.

Results may vary depending on the handler. Vantage Point Armory is not in any way responsible for the misuse of firearms or firearm parts/accessories or the results of such misuse. We highly recommend gun owners inspect parts and accessories frequently. This will help mitigate the possibility of accidents and malfunctions.

*The Vantage Point Compensator is intended for use on OEM pistols only - VPA does not guarantee function or reliability with aftermarket or modified guns

*The "P" latch on the Surefire X3000U-A must be used

DISCLAIMER: This product is not manufactured, authorized, endorsed, or warranted by Archon Firearms. Archon Firearms does not warrant or represent that this product is compatible with Archon Firearms pistols.

DISCLAIMER: Neither Vantage Point Armory, LLC nor this site are affiliated in any manner with, or otherwise endorsed by Archon Firearms. The use of “Archon” on this page is merely to advertise the sale of Archon pistols, parts, or components. Components and parts that do not specifically have Archon listed as the manufacturer are made by their respective company. Such parts may be intended for use with Archon components but are not produced by Archon. For additional genuine Beretta products and parts visit www.beretta.com
